Shenzhen Huixiang Technology Co.,LTD

Company Introduce

Shenzhen Huixiang Information Technology Co., Ltd. is committed to providing customized machine vision, image processing and sensor solutions and products for the medical device industry (IVD). Through years of industry accumulation, our products include vision software, smart cameras, bar codes and QR Code recognition readers, photoelectric sensors, capacitive sensors and so on. The products we provide are basically developed for the pain points of customers, and solve many technical problems for customers. The "Blood Stratification AI Automatic Identification Vision System" developed by us according to the customer's requirements can identify the parameters such as the height of the plasma layer, the tunica albuginea layer and the layers of red blood cells after blood centrifugation in the test tube, the quality of the plasma, and the state of the tube cap, thus solving the problems in the industry. The company takes YCS (Your Customerized Scanner) as its brand, which has been recognized by a large number of customers in the medical equipment industry.

High speed laser barcode scanner

Equipped with laser scanning technology and world-class decoding algorithms and a highly integrated hardware platform, YCS101 has the characteristics of fast sampling speed (300Hz), large depth of field (L-type: 240mm/XL-type: 600mm) and strong decoding ability (can recognize low-print quality barcodes), making it suitable for multi-row manual sample injection.

Diffuse photoelectric switch that detects transparent test tubes

The HRT2 uses a lens that combines multiple freeform surfaces to collect as much return light as possible from all directions. Coupled with a low-illumination receiver, it has a very high light sensitivity. Therefore, black, transparent or specular objects can be detected stably, even if the return light is small. Now it has been widely used in fluorescence, coagulation and other equipment for the detection of transparent test tubes and reaction cups.

Capacitive Sensor

CA05 adopts advanced algorithms to charge and discharge the capacitor multiple times, scan the capacitance value in the sensing channel multiple times, and compare it with the reference capacitor many times, so that it can accurately and stably detect whether the liquid level in the bottle or barrel reaches a specific height in a non-contact way, and avoid the inconvenience caused by the need to install it in the barrel to contact the liquid.

MV500 Smart Camera

The MV500 smart camera is an efficient, precise and easy-to-use image processing tool. The hardware integrates high-frequency processors, large-capacity memory, up to 5 million pixel color cameras, built-in light sources and other devices, and the software integrates tasks such as object detection, barcode recognition, color classification, and deep learning functions, which can help you quickly realize automated visual inspection tasks. For the general needs of the IVD industry, such as test tube type discrimination, cap identification, color recognition, barcode recognition, etc., we can provide a trained special model, which can be used directly, just like using a sensor.

The Diffuse Photoswitch-GSD15 which can detect the front and back sides of the slide

Due to the characteristics of thin and light, transparent and strong surface reflection, the glass slide will cause great interference to the detection of ordinary photoelectric products, resulting in unstable detection. With the highly automated operation of the dye machine and the reading machine, the demand for positive and negative detection of glass slides is becoming more and more urgent, and special sensors are needed to solve it. The GSD15 uses a custom-made freeform lens combination that collects as much faint reflection as possible from all directions of the glass; Low-illumination receivers are extremely sensitive to weak light signals and convert them into high-quality electrical signals. The high-precision signal processor extracts the effective signal from the complex noise signal like a gold rush.

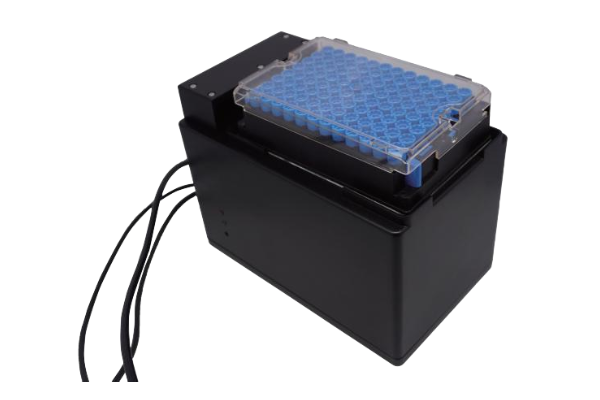

Code scanner for reading multiple codes of freezing tube at the same times

DM96 Freezing Tube Multi-Code Reading Box is designed to read all bar codes of freezing tubes at one time. And QR Code, it can read the QR Code on up to 96 freezing tubes at the same time. The equipment has the function of intelligent detection, which can detect and alarm the missing frozen tubes in time. The equipment has the function of automatically sensing whether the freezing tube is in place, and can control the switch of the code reader. This intelligent design reduces manual operation and improves work efficiency.

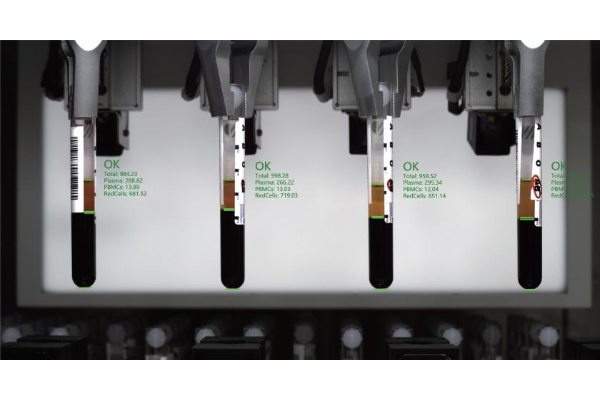

Vision Blood Blood AI Testing Software

This is a vision system built specifically for pipeline blood stratification detection applications, which can be directly embedded in the pipeline. The test tube is placed directly in the test tube rack without taking it out, which simplifies the workflow. When working, the upper electric claw drives the test tube to rotate, and the system can judge the blood stratification in the test tube in real time, give the height of plasma, red blood cells and white film layer, and judge the blood quality. The operation is simple and the result is clear. The algorithm is mature and the performance is reliable. Support customized services.
