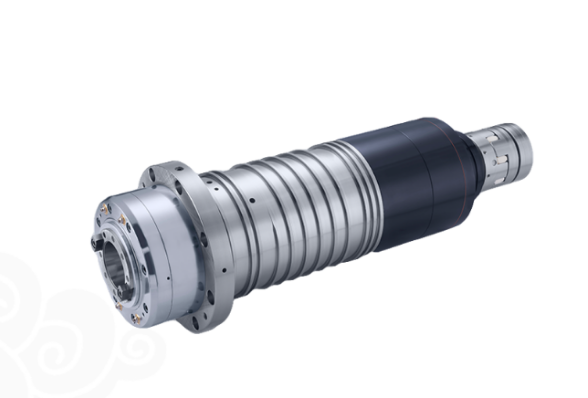

Built-in spindle: 1. Bearing lubrication: dynamic balance grade below ISO1940 G1.0, with high precision and high performance. 2. Bearing lubrication: oil-air lubrication can be used for long time and high speed processing. 3. Structure: The rotor and stator of the motor are arranged inside the main shaft, which improves the efficiency and reduces the weight of the whole main shaft head, the vibration and noise of the main shaft, and the low deflection of the main shaft. 4. Broach mechanism: adopt German disc-shaped shrapnel to ensure the stability of broach force and the service life of shrapnel. 5. Front waterproof design: The front end of the spindle is designed with air curtain and labyrinth seal, which can effectively prevent the internal structure from being contaminated by cutting fluid and impurities, and improve the safety and reliability of the spindle. The main shaft is equipped with a circular spray system, which is convenient for customers to use according to their processing requirements.

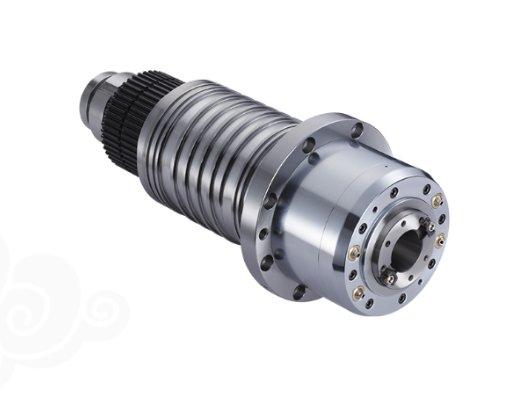

Belt Spindle: 1. Spindle accuracy: dynamic balance grade below ISO1940 G1.0, with high-precision and high-performance bearings. 2. Lubrication: It is convenient for customers to use grease for lubrication. 3. Structure: The main shaft is designed with large-span fixed-position preloading, which has high rigidity and low vibration. 4. Broach mechanism: It adopts German disc-shaped shrapnel to ensure the stability of broach force and the poison of shrapnel. 5. Front waterproof design: The front end of the spindle is designed with air curtain and labyrinth seal, which can effectively prevent cutting fluid and impurities from polluting the internal structure and improve the service life and reliability of the spindle. The main shaft is equipped with a circular spray system, which is convenient for customers to use according to their processing requirements.

Straight Spindle: 1. Spindle precision: dynamic balance grade below ISO1940 G1.0, with high precision and high performance 2. Bearing lubrication: The main shaft can be equipped with optional oil-air lubrication, which can be processed at high speed for a long time. 3. Structure: The main shaft is designed with large-span fixed-position preloading, which has high rigidity and low vibration. 4. Broach mechanism: use German disc-shaped shrapnel to ensure the stability of the broach force and the service life of the shrapnel. 5. Front waterproof design: The front end of the spindle is designed with air curtain and labyrinth seal, which can effectively prevent cutting fluid and impurities from polluting the internal structure and improve the service life and reliability of the spindle. The main shaft is equipped with a ring system, which is convenient for customers to use according to their processing requirements.

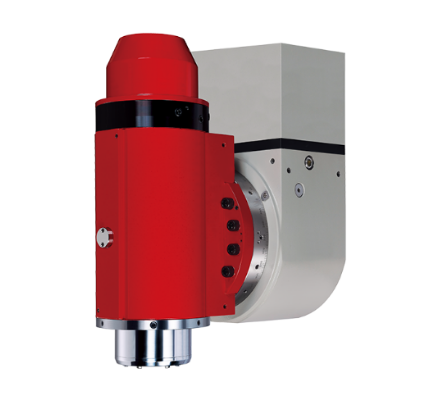

Swing Head Spindle: 1. Spindle precision: dynamic balance grade is below IS01940 G1.0, with high precision and high performance 2. Bearing lubrication: Grease lubrication is convenient for customers. 3. Structure: The rotor and stator of the motor are arranged inside the main shaft, which can improve the efficiency and reduce the weight of the whole main shaft head, the vibration and noise of the main shaft, and the low deflection of the main shaft 4. Broach mechanism: It adopts German disc-shaped shrapnel to ensure the stability of broach force and the poison of shrapnel. 5. Front waterproof design: The front end of the spindle is designed with air curtain and labyrinth seal, which can effectively prevent the cutting fluid and impurities from polluting the internal structure and improve the reliability of the spindle. The main shaft is equipped with a circular spray system, which is convenient for customers to use according to their processing requirements.

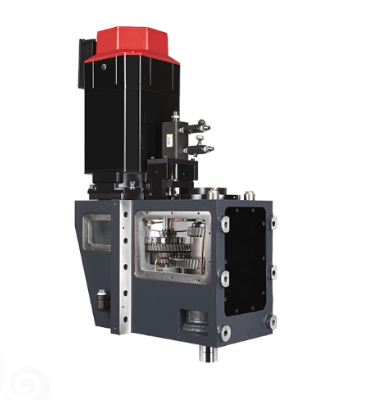

Gearbox: 1. Spindle precision: dynamic balance grade below ISO1940 G1.0, with high precision and high performance 2. Bearing lubrication: Grease lubrication is convenient for customers. 3. Structure: The main shaft is designed with large-span fixed-position preloading, which has high rigidity and low vibration. 4. Broach mechanism: It adopts German disc-shaped shrapnel to ensure the stability of broach force and the poison of shrapnel. 5. Front waterproof design: The front end of the main shaft is designed with air curtain and labyrinth seal to effectively prevent cutting fluid and impurities from polluting the internal structure and improve the reliability of the main shaft. The main shaft is equipped with a circular spray system, which is convenient for customers to use according to their processing requirements.
