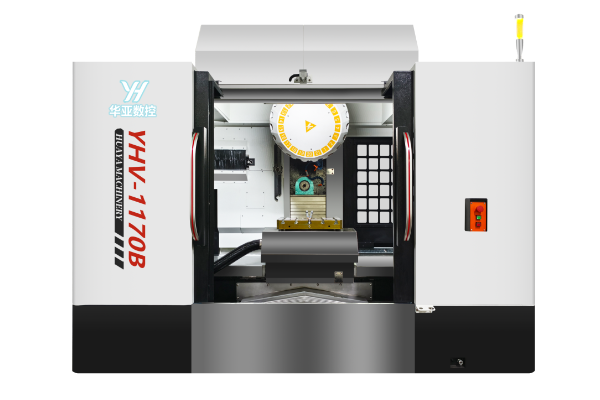

High-speed vertical-horizontal integrated drilling and tapping machine YHV1170B

The high-speed vertical and horizontal integrated drilling and tapping machine is a high-end CNC machine tool that integrates vertical and horizontal processing. It is specially designed for the efficient and precise processing of complex parts. It adopts a high-rigidity bed structure and is equipped with a vertical spindle (Z2 axis) and a horizontal spindle (Z1 axis) in an integrated structure. Through the coordinated movement of the X/Y/Z axes and the continuous linkage of the vertical and horizontal spindles, it can achieve one-time processing of five-sided bodies, complex curved surfaces, and multi-position features, completely solving the problems of low efficiency and precision deviation caused by multiple clamping in traditional processing. Machine Characteristics 1. High-precision processing guarantee • Structural rigidity optimization: The machine body is made of high-strength Minahan cast iron, which is optimized through finite element analysis. It has strong anti-vibration ability and will not deform permanently. Combined with linear ball guides, it ensures smooth movement. • Spindle thermal stability: It adopts an oil-gas lubrication system to control the spindle temperature rise to less than 2°C. It is equipped with P4-level ultra-precision angular contact ball bearings to reduce vibration and thermal deformation during high-speed rotation, ensuring that the cylindricity error of deep hole processing (length-to-diameter ratio > 5) is less than 0.01mm. 2. High-efficiency production capacity • High-speed spindle configuration: The maximum spindle speed can reach 30,000 rpm, driven by a servo motor. The material removal rate is 3 to 5 times that of a traditional drill press, especially suitable for high-speed cutting of lightweight materials such as aluminum. • Ultra-fast tool change system: It is equipped with a servo arm-type tool magazine (capacity 21 tools), with a tool change time as low as 1.2 seconds. It supports seamless switching between drilling, tapping, and milling tools, enabling continuous multi-process processing. • Multi-axis linkage efficiency: The rapid displacement speed of the X/Y/Z axes can reach 60m/min, with an acceleration of up to 1.5G. Combined with the vertical and horizontal spindle switching mechanism, it can complete five-sided processing in one go, reducing clamping times by more than 80% and shortening the processing cycle by 40% to 70%. It is suitable for industries such as LED frames, automotive and parts, aerospace, molds, medical devices, and shipbuilding.

Turn-milling compound YH6040L

Turn-milling machine tool is a high-end CNC machining equipment which integrates turning, milling, drilling and boring, tapping and other processes. It can complete the whole process of complex rotary parts through one-time clamping, greatly reduce the number of clamping, improve the processing accuracy and production efficiency, and is the core equipment of intelligent manufacturing and precision machining. Applicable industry • Automobile manufacturing: production of core components such as crankshaft, camshaft, gearbox gear shaft, new energy vehicle motor shaft, etc. • Engineering machinery: manufacture of hydraulic valve stem, pump shaft, engineering machinery connectors, etc. • Medical equipment: processing of precision shafts of surgical instruments and core rotary parts of medical equipment • Precision hardware: production of high-end fasteners, precision shaft sleeves, special-shaped rotary hardware Core machine features 1. Multi-axis linkage, composite processing: standard X/Y/Z/C axis, to achieve turn-milling process processing, can process cylindrical surface, plane, curved surface, thread, special-shaped groove and other complex structures 2. Once clamping, higher precision: reduce the positioning error of multiple clamping, better control of form and position tolerance, and meet the processing requirements of precision parts 3. Efficient integration, cost reduction and efficiency improvement: integrate the processing procedures of multiple equipment, shorten the production cycle by 30% -60%, reduce the land occupation and labor costs of equipment, and improve the automation degree of production line. 4. High rigidity structure, stable and reliable: the lathe bed adopts integral casting, with high-precision wire rail, strong vibration resistance, to ensure the stability of heavy cutting and long-term processing 5. Intelligent CNC, easy to operate: equipped with high-end CNC system, supporting CAD/CAM automatic programming, process simulation, tool life management, compatible with high-speed and high-precision machining instructions 6. Standard high-efficiency accessories: with high-pressure cooling, chip removal, tool magazine, can adapt to automatic feeding, truss manipulator, to achieve unmanned mass production 7. Suitable for a variety of materials: It can process steel, iron, aluminum, copper, titanium alloy, high-temperature alloy and other metal materials to meet the material processing needs of different industries.

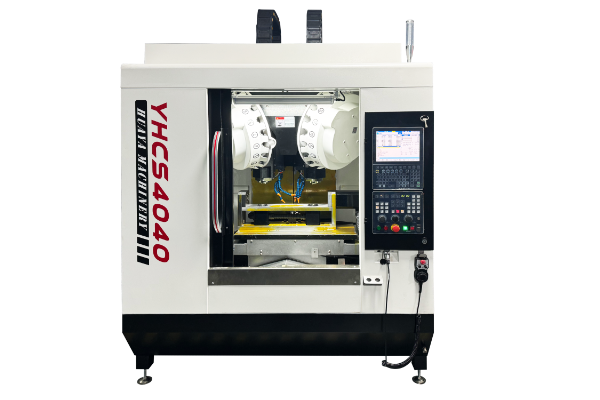

Five-axis five-linkage double-head drilling and tapping machine YHCS-4040

Shenzhen Huaya CNC launched the high-speed double spindle + double five-axis + double tool magazine precision drilling and tapping center, featuring the batch processing capacity of "one top two"; using high-strength cast iron bed, double column independent zoning; supporting one-time clamping of double parts synchronous/left and right separate processing, covering 3C electronics, new energy batteries, automotive precision parts, optical parts drilling, tapping, milling composite processes; It is especially suitable for mass production lines requiring 5-axis linkage for complex curved surface/multi-surface processing, which can greatly save space and labor costs. Machine tool core characteristics 1. Structure and efficiency: double spindles, double columns, double tool magazines (21 T double tool magazines) patent structure; double spindles high-speed same-frequency tapping, asynchronous tool change, 1.5 seconds fast tool change; spindle up to 20000 rpm; processing two identical parts at a time, efficiency increased by about 100%; repeated positioning accuracy up to 0.005 mm, to ensure batch consistency. 2. Five-axis five-five linkage capability: It is equipped with a turntable to realize full five-axis linkage, complete multi-surface/complex curved surface processing by one-time clamping, and reduce the error of multiple clamping; the high-pressure center water outlet improves the surface quality and prolongs the tool life. 3. System and compensation: high-speed processor + independent software, supporting synchronous/independent dual program; automatic tool length correction, wear compensation, improving long-term processing stability; no need for additional multiple single machines, the same capacity of the site is reduced by half, the labor is reduced by half. 4. Applicable scenarios: drilling, tapping and milling composite processing of high-precision and mass parts such as 3C communication (wireless charger, mobile phone middle frame), positive and negative electrodes of new energy batteries, automotive precision small parts, optical lens frame, etc.

Five-axis vertical machining center YHV320

A five-axis linkage vertical machining center is a high-end CNC machining equipment integrating high precision, high rigidity and high flexibility. Through the linkage control of X/Y/Z linear axis and a/C (or B/C) rotation axis, it realizes the continuous machining of multi-surface and complex curved surface under one-time clamping of workpiece, breaks through the processing limitation of traditional three-axis machine tools, and greatly improves the machining accuracy and production efficiency. It is the core processing equipment in the field of high-end manufacturing. Machine tool core characteristics 1. Five-axis linkage high-precision: equipped with high-precision CNC system, the rotating shaft adopts high-precision DD direct-drive dual-turntable structure, with positioning accuracy and repeated positioning accuracy up to micron level, which can accurately process complex space curved surface, inclined hole, chamfer and other features, and meet the precision processing requirements of high-end parts. 2. High-rigidity machine body design: The machine body and column are integrally cast with cast iron and subjected to aging treatment. The key components are designed with finite element optimization. The rigidity of the spindle and the worktable is reasonably matched, which can bear the load of heavy cutting and continuous processing, effectively suppress the processing vibration and ensure the quality of the processed surface. 3. High-efficiency processing performance: equipped with high-power, high-speed electric spindle, support constant power cutting, meet high-speed milling, drilling, boring and other multi-process composite processing; feed system uses high-rigidity linear guide/hard rail, fast moving speed and feed speed, greatly shorten the non-processing time. 4. Complete multiple processes by one clamping: it can realize the integrated processing of multiple processes such as milling, drilling, boring, reaming and tapping of the workpiece, reduce the clamping times, avoid the positioning error caused by multiple clamping, improve the overall processing accuracy of the workpiece, and save the cost and production cycle of the fixture. 5. High flexibility and intelligence: compatible with mainstream CAD/CAM software programming, support offline programming and online correction; equipped with automatic chip removal, high-pressure cooling, tool breakage detection and other functions, some models can be connected to the automatic production line (mechanical arm, material warehouse), to achieve unmanned continuous processing, adapt to multi-variety, small batch and large batch production needs.

Main products

Main products: CNC milling machine, CNC machining center, cradle five-axis machining center, five-axis linkage machining center, drilling and tapping machine, pentahedron machining center, vertical and horizontal drilling and tapping machine, double-spindle machining center, high-speed three-head three-channel drilling and tapping machine, vertical machining center, horizontal machining center, moving column profile machining center, moving beam gantry milling machine and other dozens of models.
