LMI Technologies | ITES Exhibition

Company Introduce

LMI Technologies is a global leader in industrial inspection, advancing manufacturing quality through smart 3D and 2D vision solutions. Its award-winning Gocator® portfolio—including FactorySmart® 3D sensors and Gocator® 2D Smart Cameras—delivers fast, accurate, and reliable inspection powered by the unified GoPxL® platform. LMI enables manufacturers to deploy measurement, AI-based inspection, and traceability with minimal integration, reduced complexity, and no reliance on PCs or cloud infrastructure.

Gocator 4000 Series Smart 3D Coaxial Line Confocal Sensor

Gocator 4006 model is added to the Gocator 4000 series of intelligent 3D coaxial line confocal sensors, providing high-speed, high-precision, high-resolution, zero-shadow and unobstructed 3D online scanning and detection, with a resolution of 1.2 microns in the X direction and a resolution of 0.16 microns in the Z direction. Compatible up to +/-85 degrees. The coaxial optical design enables zero-occlusion scanning of simple or complex material surfaces, and provides more accurate measurement results when detecting some target applications, such as steep components, super-curved surfaces and deep grooves, which is very suitable for semiconductor, consumer electronics and EV battery applications.

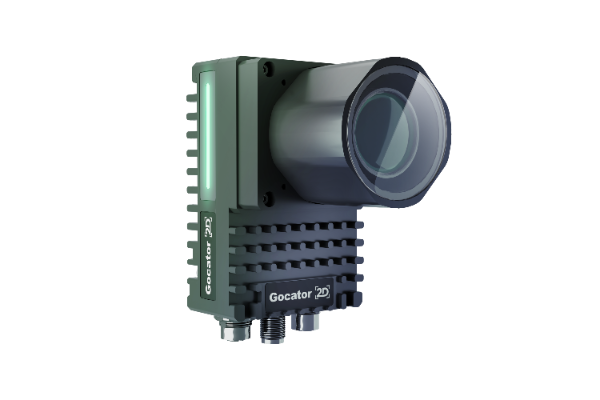

Gocator 2D Smart Sensors

Gocator® 2D cameras combine high-speed imaging and deep edge AI (deep learning-powered intelligence executed on-device), in one compact, IP67-rated package—built on the NVIDIA Jetson Orin NX and powered by onboard GoPxL IIoT vision software. These cameras capture, inspect, and output results at up to 84 fps—no PC, no cloud, no middleware––just powerful inspection performance, straight from the camera.

Gocator 6300 Series Smart 3D Line Laser Profile Sensor

Gocator 6300 Series is a new smart 3D line laser profile sensor designed by LMI Technologies to achieve the ultimate 2D/3D scanning performance, with more than 6500 points per profile, and the X-direction profile data interval is less than 2.1 microns when the field of view is 13.4 mm. The combination of speed, precision, and scan range for superior inspection in semiconductor, electric vehicle battery, and consumer electronics applications. The Gocator 6300 series line offers a combination of high speed, high accuracy and large field of view to meet the online production cycle, and the high X-direction profile data interval enables accurate measurement in a large field of view. Telecentric parallel light minimizes occlusion and improves the blurring that may be caused by diffuse reflection, optimizing the detection of minor defects and edges. Customized camera lenses with high resolution and high numerical aperture are used to improve the angle compatibility of adaptation, maximize the amount of light collection and obtain the best data quality. A new optical design is used to optimize the straightness of the laser line of the sensor, which greatly optimizes the scanning data of curved surfaces and highlighted targets.

Gocator 5500 Series 3D SMART LINE CONFOCAL SENSORS

Gocator 5500 sensors deliver high speed, wide coverage line scanning with simultaneous generation of 3D topography, 3D tomography, and 2D intensity data. This allows Gocator 5500 series to scan practically any material type - including multi-layered, transparent/translucent, curved edge, shiny/specular, high-contrast textured, mixed, and many more - with submicron precision, and at a level of quality and speed. Proven Gocator line confocal inspection applications include cell phone display glass, glue bead volume and position (transparent/translucent), medical seal integrity, battery weld seam integrity, semiconductor manufacturing, surface roughness measurement and many more.

Gocator 3200 Series Snapshot Sensors

Use Gocator 3210’s blue-LED structured light technology and wide field of view for full-field inspection of large targets (e.g., automotive components and assemblies). Fast scan rate (6 Hz w/ acceleration) 2-megapixel stereo camera minimizes occlusions Large field of view (FOV) up to 100 x 154 mm Pick-and-place friendly for robotic/stationary inspection applications

Gocator 2500 Series smart 3D laser profile sensor

Designed for high performance parts inspection, Gocator 2500 series 3D smart line profilers achieve inspection rates up to 10 kHz (including scan, measure, and control) and optimized optical design, and blue laser light generate excellent data with highly repeatable results on shiny and other challenging surfaces.
