Company Introduce
Located in the Equipment Industrial Park of Zizhong County, Neijiang City, Sichuan Province, Sichuan Chentian Machine Tool Manufacturing Co., Ltd. is a state-level high-tech enterprise, a provincial-level "specialized, special and new" enterprise, a state-level pilot enterprise for digital transformation, and a city-level technology center, with the right to import and export. The company is mainly engaged in the R & D and production of high-end CNC lathes, which have been sold all over the country, partly replacing imported products. The main products are horizontal CNC lathes, vertical CNC lathes, gantry CNC milling machines, vertical milling centers, automatic mechanical arm CNC lathes, five series and more than 20 varieties. The company produces products with independent intellectual property rights, and now has an annual production capacity of 2000 new CNC machine tools. In 2021, it has become the largest machine tool factory in Southwest China, and its products are sold to all parts of the country, Russia, the Middle East, Central Asia, Southeast Asia and other regions. The company has passed the ISO9001 \ ISO14001 \ ISO45001 (quality management certification, occupational safety and health certification, enterprise environmental protection certification) of the National CQC Certification Center (National Quality Management Certification Center).
Exhibit brands
Exhibits
H400 turning-milling composite CNC lathe
H400 CNC lathe is a patented product of our company, with the patent number of ZL2018207776267. It is an integral asynchronous lathe head and ZL2018218955114 CNC lathe with direct-drive spindle. The CNC lathe adopts a semi-closed loop control CNC lathe system. The standard configuration is three-axis control C \ X \ Z \ Y \ A, the main machine adopts 30 ° inclined carriage, stepped rail layout, Z-axis pulley is triangular structure, and the carriage has strong rigidity. The spindle (C axis) is an integrated AC asynchronous servo motor directly driven by a non-transmission mechanism to realize position control and speed control. The spindle can realize rotary feeding, indexing and accurate stop. Spindle clamping is realized by using the hydraulic rotary cylinder to drive the three-jaw Chuck. X and Z are driven by ball screw and linear rolling guide. The guide rail is fully protected, and the feed motor is a 5-pair servo motor (23-bit encoder). The machine tool has good dynamic characteristics, high precision and strong rigidity. The acceleration and deceleration time of the spindle is short, the roughness of the machined surface can reach Ra0.8 or lower, and the gravity acceleration is as high as 0.8G.
H500 turning-milling composite CNC lathe
H500 CNC lathe is a patented product of our company, with the patent number of ZL2018207776267. It is an integral asynchronous lathe head and ZL2018218955114 CNC lathe with direct-drive spindle. The CNC lathe adopts a semi-closed loop control CNC lathe system. The standard configuration is three-axis control C \ X \ Z, the host adopts 30 inclined carriage, stepped rail layout, Z-axis carriage is triangular structure, and the carriage has strong rigidity. The spindle (C axis) is a direct-drive AC asynchronous servo spindle without transmission mechanism, which realizes position control and speed control. The spindle can realize rotary feeding, indexing and calibration. The clamping of the main shaft is realized by the three-jaw Chuck driven by the hydraulic rotary cylinder. X and Z are driven by ball screw, rolling linear guide rail; guide rail protection adopts full protection, carriage feeding adopts absolute value AC servo motor. The machine tool has good dynamic characteristics, high precision and strong rigidity.
H48 CNC lathe
H48 CNC lathe is a patented product of our company, with the patent number of ZL2018207776267-type integral asynchronous bed head and ZL2018218955114 CNC lathe with direct-drive spindle. The CNC lathe is equipped with five-axis (X/Z/C/A/B) semi-closed-loop control CNC lathe system as standard. The standard configuration is three-axis control C/X/Z, the host adopts 45 "inclined guide rail layout, and the X carriage is an integrated carriage. The X axis is in the same plane as the Z axis. The main shaft (C shaft) is an AC asynchronous servo main shaft directly driven by a non-transmission mechanism to realize position control and speed control. The main shaft can realize rotary feeding, indexing and accurate stop. Two shafts can be expanded on the carriage in the later period. Spindle clamping is realized by using hydraulic rotary cylinder to drive three-jaw Chuck or elastic Chuck to clamp the workpiece. The X. Z is driven by the ball screw and rolls the linear guide rail. The carriage can automatically eliminate the reverse clearance of the carriage by gravity. The guide rail protection adopts full protection and absolute value AC servo motor. The machine tool has good dynamic characteristics, high precision and strong rigidity.

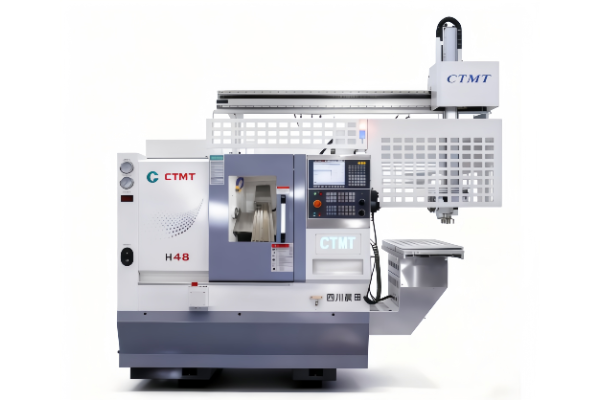

H48 Truss CNC Lathe
H48 truss CNC lathe is equipped with five-axis (X \ Z \ C \ A \ B) semi-closed-loop control CNC lathe system and three-axis truss controller as standard. The machine tool and the truss body are of integrated design. The main machine is equipped with a lathe bed and a 45 ° inclined guide rail layout, and the X carriage is an inverted integrated carriage. The X axis and the Z axis are in the same plane. The spindle (C axis) is controlled by a direct-drive AC asynchronous servo spindle to realize position control and speed control. The spindle can realize rotary feed, indexing and accurate stop. Two axes can be expanded on the carriage in the later period. The clamping of the main shaft is realized by using a hydraulic rotary cylinder to drive a three-jaw Chuck or an elastic collet to clamp the workpiece. X and Z are driven by ball screw, rolling linear guide rail, and the carriage can automatically eliminate the reverse clearance of the carriage by gravity; the guide rail is fully protected by absolute AC servo motor. The machine tool has good dynamic characteristics, high precision and strong rigidity.
Main products
The main products are horizontal CNC lathes, vertical CNC lathes, gantry CNC milling machines, vertical milling centers, automatic mechanical arm CNC machine tools five series, more than 20 varieties.
