Shenzhen CJR Electronics Co.,Ltd/Shenzhen Huizong Intelligent Equipment Co., Ltd

Company Introduce

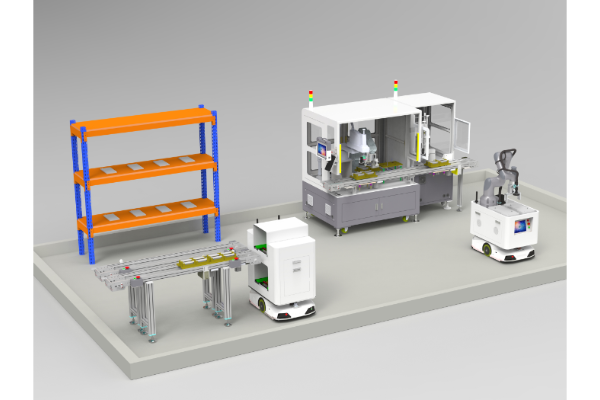

Shenzhen Chuangjingrui Electronics Co., Ltd. focuses on the field of intelligent manufacturing and robotics, and is committed to providing customers with one-stop solutions from intelligent production to intelligent logistics. We take robots, AGV and other hardware as the execution basis, self-developed WES/MES system and digital Lisheng technology as the data core, through the deep integration of "equipment execution + data management + virtual simulation", build an intelligent brain to drive the entire production process, and ultimately achieve efficient and seamless operation from precision assembly to intelligent logistics. In this exhibition, we will demonstrate a "thinking" intelligent production line on the spot.

Compound robot

Realize autonomous movement and precise positioning, suitable for various scenarios such as workshops and warehouses; Equipped with a mechanical arm to complete automated operations such as material grasping, transportation, and loading/unloading; Support visual guidance, accurately identify the position and posture of the workpiece, and perform stable grasping. Parameters: 1. AGV load capacity: 150KG; 2. Robot load capacity: 12KG; 3. Working radius: 1434mm; 4. Robot power supply: 48V; 5. Robot power consumption: 500W; 6. Repeated positioning accuracy: ±0.03mm; 7. Electric gripper: Clamping force 50N; 8. Visual working focal length: ≤50N; 9. Display: 10.5 inches; 10. Dimensions: L900*W590*H1590mm

Roller robot

Supports laser/visual navigation, autonomously plans the path, and does not require manual guidance; Through its built-in roller conveyor device, it can seamlessly connect with production lines, sorting platforms, etc.; The docking accuracy can reach ±5mm, ensuring the matching of the docking position and avoiding the dropping of materials. Parameters: 1. Roller layers: 2 layers; 2. Discharge method: Dual discharge, both ends have blocking functions; 3. Power supply: Automatic battery for AGV vehicle chassis; 4. Size: L910*W590*H1150mm

Screw lock pair robot

1. Various formulations can be configured according to the product locking requirements, and the product can be switched at any time. 2. The speed of the robot can be adjusted, and the operation efficiency is about 30% higher than that of manual operation. 3. Visual guidance for the robotic arm, high-precision automatic alignment of screw holes, stable quality. 4. Product circulation method: customer line system. 5. Product positioning method: lifting + pressure rod. 6. Locking range: 400x300x150 mm. 7. Nail delivery method: suction blowing type. 8. Thread diameter: 2 - 5 mm. Thread length: maximum 25 mm. Torque range: 0.1 - 10 N.m. 9. Visual camera pixel: 600 W (resolution 3072x2048) Photo height: 200 mm Single element precision: 0.03 mm. 10. Robot: four axes. 11. Control system: PC + motion control card. 12. Locking cycle: 1.2 - 3 seconds per screw. 13. Power supply: 220V 50Hz. Air source pressure: 0.4 - 0.6 Mpa. 14. Equipment power: 1.5 KW. 15. Equipment size (LxWxH): 800x600x1800 mm.

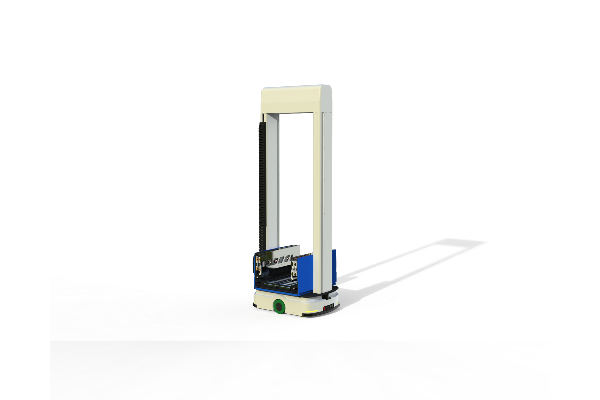

Bin handling robot

Supports laser/visual navigation, autonomously plans the path, and does not require manual guidance; Through its built-in lifting and fork telescoping devices, it can seamlessly connect with shelves, production lines, sorting platforms, etc.; The docking accuracy can reach ±5mm, ensuring the matching of the docking position and avoiding the dropping of materials. Parameters: 1. Number of workstations: single workstation; 2. Discharge method: double discharge, both ends have blocking functions; 3. Power supply: automatic battery for AGV vehicle chassis; 4. Dimensions: L950*W650*H2800mm 5. Box specification: <600*400mm

Main products

Industrial robot, compound robot, palletizing robot, mobile robot (AMR), roller robot, bin AGV, robot application (Robot +), logistics central control system (WES), warehouse management system (WMS), robot scheduling system (RCS), 3D digital twin system, manufacturing execution system (E-MES), Logistics storage equipment (ASRS) provides efficient and flexible solutions such as compatible scheduling, intelligent logistics simulation, automated process scheduling, 3D digital twin, etc.
